Manufacturer: Langer EMV-Technik

XF-E 04S Poll E 30 MHz probe up to 6 GHz

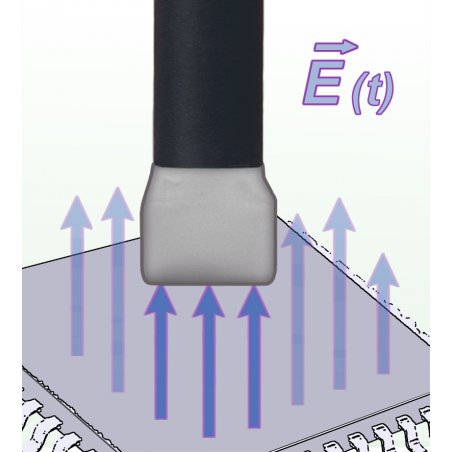

The electrode on the probe head of the XF-E 04s near-field probe detects electrical fields which, for example are decoupled above the IC’s surface. The probe’s resolution allows for measurements at a distance of 0.5 mm upto 10 mm above an assembly. The XF-E 04s is a passive near-field probe. In principle it has the same structure as the XF-E 09s probes. To measure, the E-field probe is positioned above or onto components and printed circuit boards. It has a current attenuating sheath and, therefore, its upper half is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The E-field probe has an internal terminating resistance.
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

The electrode on the probe head of the XF-E 04s near-field probe detects electrical fields which, for example are decoupled above the IC’s surface. The probe’s resolution allows for measurements at a distance of 0.5 mm upto 10 mm above an assembly. The XF-E 04s is a passive near-field probe. In principle it has the same structure as the XF-E 09s probes. To measure, the E-field probe is positioned above or onto components and printed circuit boards. It has a current attenuating sheath and, therefore, its upper half is electrically shielded. It can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The E-field probe has an internal terminating resistance.
