Manufacturer: Langer EMV-Technik

SX-R 20-1 SONDA POLE H 1 GHz up to 20 GHz

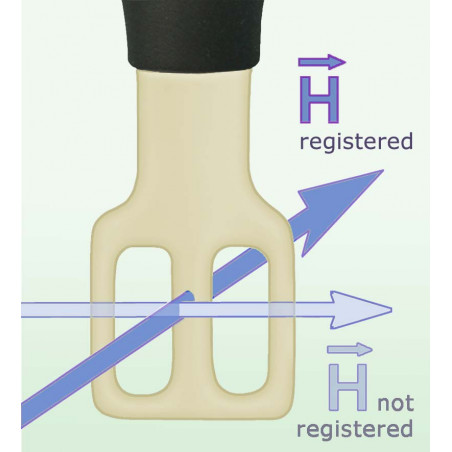

The SX-R 20-1 is a passive H-field probe covering a frequency range up to 20 GHz. The probe head of the SX-R 20-1 is very compact. This allows the location of very small H-field sources, e.g. on traces, individual components or above an IC. It has a current attenuating sheath and is electrically shielded. The near-field probe can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input.
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

The SX-R 20-1 is a passive H-field probe covering a frequency range up to 20 GHz. The probe head of the SX-R 20-1 is very compact. This allows the location of very small H-field sources, e.g. on traces, individual components or above an IC. It has a current attenuating sheath and is electrically shielded. The near-field probe can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input.
