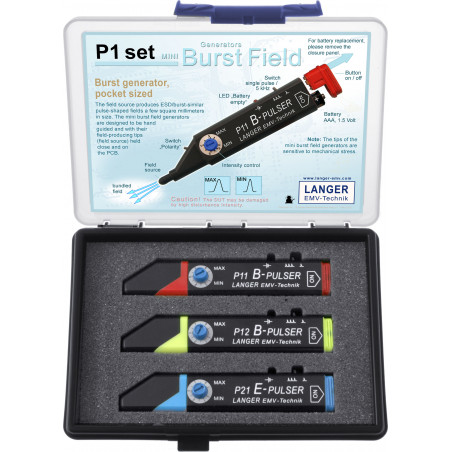

The mini-series P1 field generators are small and ergonomic. They are used to identify and eliminate weak points in electronic assemblies during the device design phase. At their ends, pulses and ESD fields are generated. The handheld mini generators from Langer EMV are guided near the surface of the printed circuit board (PCB). Weak points react to the pulsating field, leading to malfunction. The generators can be applied to selected individual sections of the PCB design to identify potential weak points (faults in the grounding system, individual traces, or IC pins). Separate magnetic (P11 and P12) and electric (P21) coupling allows for optimal adaptation of EMC countermeasures to the corresponding weak point in the circuit.

Technical parameters
Generated E-field strength approx. 100 kV/m
Generated magnetic flux density approx. 1 mT
Pulse parameters
Frequency single / 5 kHz
Power supply 1.5 V / AAA
