Manufacturer: ELEQ

IGHF - overhead current transformers medium voltage

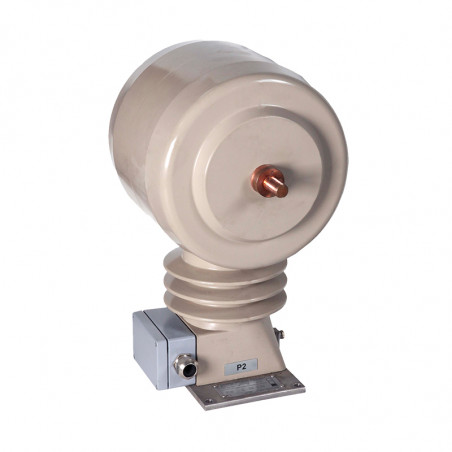

IGHF Outdoor Head Current Transformer

The cast resin outdoor current transformer is capable to withstanding the outdoor environmental condition. The current transformer is maintenance-free and only mountable in vertical situation. The primary current is connected with an internal bus bar. The secondary windings are used for measurement and / or protection purposes, or optional with test winding


Technical Data



Design Cast-resin insulated
Colour brown
In accordance to VDE 0414; IEC 60044; ASCI C 57.13; BS 1675
Class of insulation B
Ith 100 x IN (max.100kA)
Idyn: 2,5 x ITh (max. 125kA)
Frequency : 50Hz, 60Hz other frequency on request
Rated insulation voltage complying with the standard
Secondary current 1A; 5A; other current on request
Burde / Class: depending from number of cores accu-racy limit factors and the rated output
Secondary terminal box: with degree of protection IP64 Base
Special model: Secondary switch-over


Type

IGHF 12B 300

IGHF 24B 300

IGHF 36B 300
Insulation voltage [kV] 12/28/75 24/50/125 36/70/170
Max. Ipn[A] 3000 3000 3000
Creepage distance [mm] 409 480 1124
Max. number of cores 4 5 5
Number of rips 3 4 10
Weight [kg] 46 48 56


Dimensional drawing

IGHF - przekładniki prądowe napowietrzne średniego napięcia - wymiary

IGHF - przekładniki prądowe napowietrzne średniego napięcia wymiary


Type A B C D Sec. Terminals Rippen

IGHF 12

 300 300 350 500 8 3

IGHF 24

 300 300 395 545 10 4

IGHF 36

 300 300 542 692 10 10
