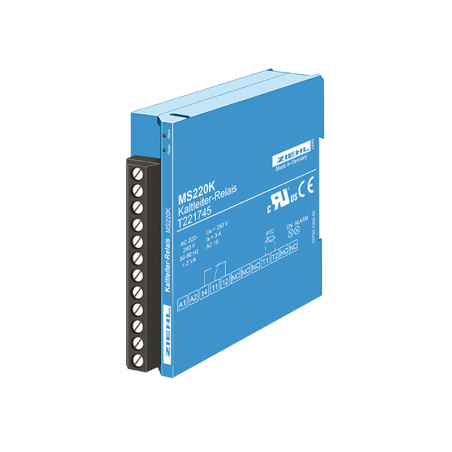

![PTC thermal relay type MS220K PTC thermal relay type MS220K](https://www.dacpol.eu/41535-large_default/ptc-resistor-relay-type-ms220k.jpg)

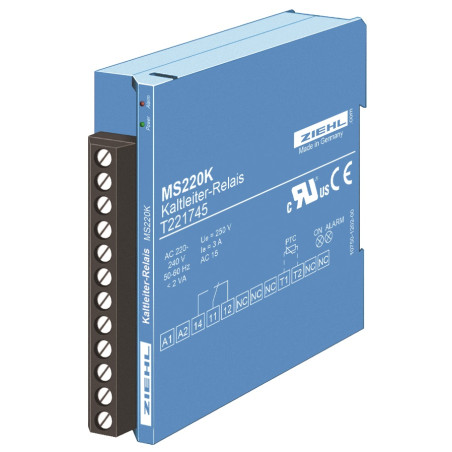

![PTC thermal relay type MS220K PTC thermal relay type MS220K](https://www.dacpol.eu/41535-large_default/ptc-resistor-relay-type-ms220k.jpg)
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Photos are for informational purposes only. View product specification
please use latin characters
ZIEHL PTC-resistor relays protect motors, transformers, machines and equipment against thermal overload. With ZIEHL PTC Sensors MINIKA ® applied they offer best solutions for nominal response temperatures 60°C…180°C. ZIEHL PTC-resistor relays are designed for PTC-sensors according to DIN 44081 and DIN 44082. Therefor sensor and relays are exchangeable. PTC-resistor sensors are suitable for the installation into windings of electrical machines, bearings and transformers as well as to monitor the temperature of liquid media, airflow and gases. Used in conjunction, they provide a effectively and reliable protection in case of:
Part number:
|
Rated supply voltage Us | AC 220 - 240 V ± 10 % 50/60 Hz ≤ 2 VA AC/DC 24 V, AC ± 10 % DC 21- 30 V <2 VA, without potential separation |
---|---|
Connectable PTC resistors | 1...6 PTC according DIN VDE V 0898-1-401 (formerly DIN 44081/82) |
Switching poin | <4000 Ω |
Output relay | 1 or 2 change-over-contact (co) |
Type of contact | Type 2 (see general technical information) |
Test conditions | see general technical information |
Rated ambient temperature | -20 ... + 55 ° C |
Dimensions h x w x d | Design K: 75 x 22,5 x 115 [mm] |
Attachment | on 35 mm DIN rail according to EN 60 715 or screws M4 |
Protection Housing/Terminals | IP30 / IP20 |
Weight | approx. 150 g |
Are you interested in this product? Do you need additional information or individual pricing?
ZIEHL PTC-resistor relays protect motors, transformers, machines and equipment against thermal overload. With ZIEHL PTC Sensors MINIKA ® applied they offer best solutions for nominal response temperatures 60°C…180°C. ZIEHL PTC-resistor relays are designed for PTC-sensors according to DIN 44081 and DIN 44082. Therefor sensor and relays are exchangeable. PTC-resistor sensors are suitable for the installation into windings of electrical machines, bearings and transformers as well as to monitor the temperature of liquid media, airflow and gases. Used in conjunction, they provide a effectively and reliable protection in case of:
Part number:
|
Rated supply voltage Us | AC 220 - 240 V ± 10 % 50/60 Hz ≤ 2 VA AC/DC 24 V, AC ± 10 % DC 21- 30 V <2 VA, without potential separation |
---|---|
Connectable PTC resistors | 1...6 PTC according DIN VDE V 0898-1-401 (formerly DIN 44081/82) |
Switching poin | <4000 Ω |
Output relay | 1 or 2 change-over-contact (co) |
Type of contact | Type 2 (see general technical information) |
Test conditions | see general technical information |
Rated ambient temperature | -20 ... + 55 ° C |
Dimensions h x w x d | Design K: 75 x 22,5 x 115 [mm] |
Attachment | on 35 mm DIN rail according to EN 60 715 or screws M4 |
Protection Housing/Terminals | IP30 / IP20 |
Weight | approx. 150 g |
