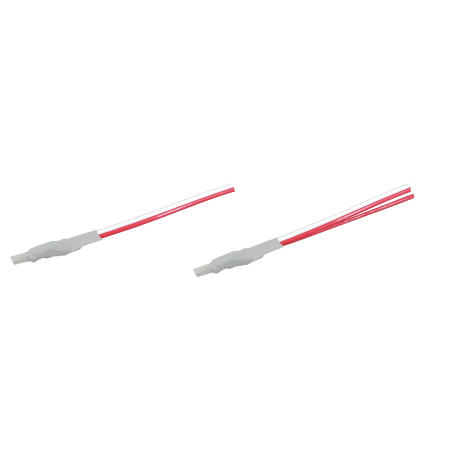

TF101U2 resistance thermometer (RTD) PT100
  • TF101U2 resistance thermometer (RTD) PT100

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: ZIEHL

TF101U2 resistance thermometer (RTD) PT100

  • TF101U2
TF101 temperature sensors use platinum resistive temperature sensors (RTD) EN 60751/IEC 60751. (RTD). For precise temperature measurement The platinum resistance thermometer offers the best general benefits in terms of repeatability and stability for a long time. High accuracy It allows you to replace the sensor without having to re -adjust the connected measuring devices or thermostats. connected measuring devices or thermostats. TF101 temperature sensors They are available in different versions. TF101U2 sensors are enclosed in a V4A stainless steel housing. They are are suitable for measuring temperature in liquids, on surfaces or for use inside or outside. The degree of protection is IP 66. Version with PVC isolated cable (3 x 0.25 mm2 in one cable) can be easily connected. The maximum ambient temperature is 105 ° C. The sensor with a 30 mm cable (PVC) can be mounted in terminals in distribution cabinets to measure the temperature in the housing. Version with PTFE insulation (3 x 0.14 mm2 single wires) withstands peak temperatures up to 200 ° C
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

TF101 temperature sensors use platinum resistive temperature sensors (RTD) EN 60751/IEC 60751. (RTD). For precise temperature measurement The platinum resistance thermometer offers the best general benefits in terms of repeatability and stability for a long time. High accuracy It allows you to replace the sensor without having to re -adjust the connected measuring devices or thermostats. connected measuring devices or thermostats. TF101 temperature sensors They are available in different versions. TF101U2 sensors are enclosed in a V4A stainless steel housing. They are are suitable for measuring temperature in liquids, on surfaces or for use inside or outside. The degree of protection is IP 66. Version with PVC isolated cable (3 x 0.25 mm2 in one cable) can be easily connected. The maximum ambient temperature is 105 ° C. The sensor with a 30 mm cable (PVC) can be mounted in terminals in distribution cabinets to measure the temperature in the housing. Version with PTFE insulation (3 x 0.14 mm2 single wires) withstands peak temperatures up to 200 ° C
