Manufacturer: ZIEHL

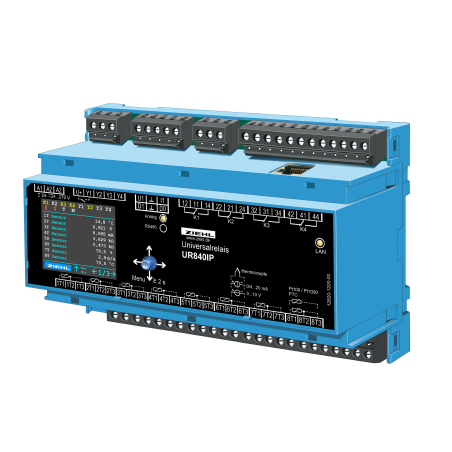

UR840IP - Universal Relay - T224353

  • T224353
  • Additional information PP plastic
  • Product Type IP54 motor, IP20 electronics
  • Supply voltage AC/DC 24 - 270 V
  • Execution Customer specific / IP 6K9K
  • Certificate IP 30 (IP 44, with bracket and cover)
  • Output function Analog Outputs 0/4-20 mA, 0-10 V, Outputs/Relays, 2 outputs, Ethernet TCP/IP, Interface/Bus
  • Measured value PP plastic, white

Web-IO universal limit value relay with Ethernet interface, built-in web server and 8 inputs for temperature sensors or other analog signals. The UR840IP can be connected to the internet or an intranet and operated via TCP/IP from a normal PC with a suitable browser.
The device can simultaneously evaluate and monitor up to 8 different input signals. Each of the 4 output relays can be assigned up to 8 limit values, one per input. If a limit value is reached, an alarm is triggered and a relay switches. Example: Alarm 1 is activated when a temperature is exceeded at sensor input 3 (e.g. Pt 100) or the signal from a pressure transmitter (e.g. 4-20 mA) at input 5 falls below a limit value. The device also has an RS485 interface (Modbus RTU) or analogue outputs 0/2-10 V or 0/4-20 mA.

Accessory: Installation frame ER8 for panel mount



Applications

The UR840IP is used where one or more of the following features a required:

  • The UR840IP is used to advantage wherever the following features are required
  • monitor up to 8 different analogue measured values ​​and transfer them to the Internet
  • Measured value query and remote maintenance via intranet/internet

Discover the difference between our TR800Web and the new UR840IP!

Features

TR800Web

UR840IP

Inputs

8 analog inputs

8 analog inputs, 4 digital outputs

Sensors

Pt100, Pt1000, KTY83/84, thermoecouples (Type B, E, J, K, L, N, R,S,T),DC 0-10V,DC 0/4-20 mA, resistance 0-500 Ohm, 0-30 kOhm

Pt100, Pt1000, PTC, thermocouples (Type B, E, J, K, L, N, R, S, T), DC 0/2-10 V, DC 0/4-20 mA, resistance 0-500 Ohm, 0-30 kOhm

Alarms

4 relays, programmable, E-mail notification in the event of alarms

4 relays, programmable, Alarm triggering of 2 of x sensors possible

Interfaces

Ethernet (HTTP, HTTPS, UDP, Modbus), RS485 (Modbus RTU, ZIEHL-protocol)

Ethernet (HTTP, Modbus TCP), RS485 (Modbus RTU), 2 x analog outputs (1x voltage, 1x current) – optional RS485 or analog can be activated in the menu

Web-Interface

Operation and programming via web browser

Operation and programming via web browser

Date logging

Up to 150.000 values ​​per input, interval 2 seconds to 24 hours

Per input, interval 10 seconds to 30 minutes

Supply voltage

AC/DC 24-240V, 0/50/60 Hz, 4-13 VA

AC/DC 24-240V, 0/50/60 Hz, 4-11 VA

Special features

Day/night switchover for limit values, E-mail notification

Joystick and LCD display for easy operation
