Manufacturer: BOXCO INC.

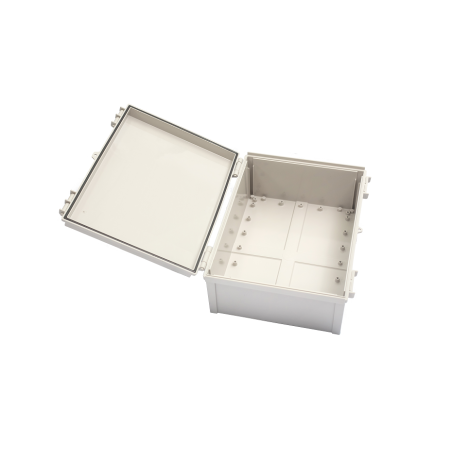

HINGE TYPE ENCLOSURE Q SERIES

It has few discoloration even used outdoors for a long time by addition of UV Stabilizer.

It protects electric/electronic instruments by using the material with substance preventing static electricity.

It is easy to make without breakage in hole and drill press and very strong against impact by using the material for high impact resistance.

We can supply optimized products which will be made of ordered material you request considering purpose and area used besides standard specification.

Specifications:

IP rating IP 66/67
IK Rating IK 08
Temperature range ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
Flammability Rating ABS : 94-HB | PC : 94-V-0, 5VA, HB


Model and Size:

Size (Include cover) Model Mounting plate Plate Dimension
W1×L1×H1 (mm) W1×L1×H1 (inch) ABS Grey cover ABS Transparent cover Steel SQ type Plastic G type M1 M2
100x150x90 3.94×5.91×3.54 BC-AGQ-101509 BC-ATQ-101509 74 124
100x150x90 5.91×5.91×3.54 BC-AGQ-151509 BC-ATQ-151509 1515SQ 1515G 124 124
150×150×120 5.91×5.91×4.72 BC-AGQ-151512 BC-ATQ-151512 1515SQ 1515G 124 124
160×210×100 6.30×8.27×3.94 BC-AGQ-162110 BC-ATQ-162110 1520SQ 1520G 130 180
160×210×130 6.30×8.27×5.12 BC-AGQ-162113 BC-ATQ-162113 1520SQ 1520G 130 180
210×210×130 8.27×8.27×5.12 BC-AGQ-212113 BC-ATQ-212113 2020SQ 2020G 180 180
200×300×130 7.87×11.81×5.12 BC-AGQ-203013 BC-ATQ-203013 2030SQ 2030G 160 260
200×300×140 7.87×11.81×5.51 BC-AGQ-203014 BC-ATQ-203014 2030SQ 2030G 160 260
200×300×150 7.87×11.81×5.91 BC-AGQ-203015 BC-ATQ-203015 2030SQ 2030G 160 260
200×300×180 7.87×11.81×7.09 BC-AGQ-203018 BC-ATQ-203018 2030SQ 2030G 210 260
250×350×160 7.87×11.81×7.09 BC-AGQ-253516 BC-ATQ-253516 2535SQ 2535G 260 310
300×300×160 11.81×11.81×6.30 BC-AGQ-303016 BC-ATQ-303016 3030SQ 3030G 260 260
300×400×150 11.81×15.75×5.91 BC-AGQ-304015 BC-ATQ-304015 3040SQ 3040G 260 360
300×400×160 11.81×15.75×6.30 BC-AGQ-304016 BC-ATQ-304016 3040SQ 3040G 260 360
300×400×180 11.81×15.75×7.09 BC-AGQ-304018 BC-ATQ-304018 3040SQ 3040G 260 360
350×450×200 13.78×17.72×7.87 BC-AGQ-354520 BC-ATQ-354520 3545SQ 3545G 300 400
400×500×160 15.75×19.69×6.30 BC-AGQ-405016 BC-ATQ-405016 4050SQ 4050G 350 450
400×500×200 15.75×19.69×7.87 BC-AGQ-405020 BC-ATQ-405020 4050SQ 4050G 350 450


Bracket mounting insert

It helps to fix the box tightly as brass insert is inserted in injection molding.

Wkładka montażowa wspornika.

Mounting plate insert

Inner mounting plate equipped with heavy parts can be fixed tightly as brass is inserted in injection molding.

Wkład płyty montażowej

Plastic Mounting Plate

It is easy to make hole and has excellent insulation property. It is made to be strong with ABS material.

Plastikowa płyta montażowa

Gasket

It has excellent water proofing and dust proofing performance as gasket is sealed by super precision CNC robot machine.

Uszczelka
