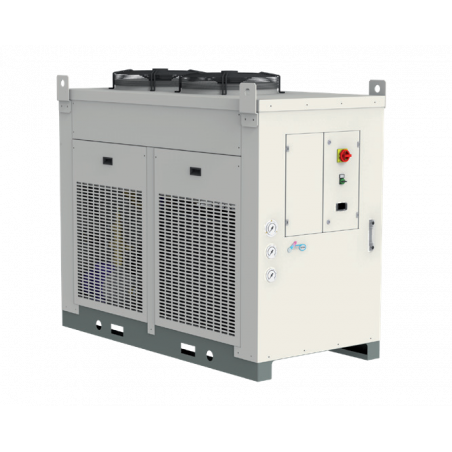

LCWA2 Ice water aggregates with a negative temperature
  • LCWA2 Ice water aggregates with a negative temperature
  • LCWA2 Ice water aggregates with a negative temperature

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

LCWA2 Ice water aggregates with a negative temperature

  • LCWA2
  • Supply voltage 400V (+/-10%) 3ph 50Hz V ph Hz
  • Width 844 mm
  • Height 1485 mm
  • Depth 1759 mm
  • Sound pressure level 70 dB(A)
  • Air flow rate (Axial fan) 10000 m3/h
  • Air flow rate (Centrifugal fan optional) 10000 m3/h
  • Ambient temperature operating limits 15 ... 48 °C
  • Head available 220 Pa
  • Power consumption available 1.4 kW
  • Compressor type Spiralny
  • Digital thermostat TX200
  • Fan type Odśrodkowy
  • Type of fluid Woda + Glikol Etylenowy 50%
  • IN / OUT fluid connections 1 1/2"
  • IP class 44 IP
  • Current draw 47.0 A
  • Power consumption 28000 W
  • Nominal head available 3.7 bar
  • Nominal / maximum fluid flow rate 50 ... 150 l/min
  • Pump type Odśrodkowy
  • Quantity 2 no.
  • Number of circuits 2 - 1 no.
  • Rated Cooling Capacity 13000 W
  • Refrigerant gas R404A HFC
  • Secondary supply voltage 24 V AC V
  • Adjustable fluid temperature range -30 ... -5 °C
  • Storage tank capacity 120 l
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 550 kg
