Manufacturer: TEXA industries

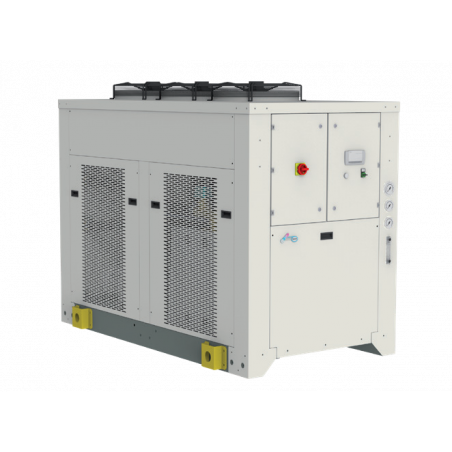

LCWC4 Ice water aggregates with a negative temperature

  • LCWC4
  • Supply voltage 400V (+/-10%) 3ph 50Hz V ph Hz
  • Width 1094 mm
  • Height 1599 mm
  • Depth 2062 mm
  • Sound pressure level 74 dB(A)
  • Air flow rate (Axial fan) 17000 m3/h
  • Air flow rate (Centrifugal fan optional) 17000 m3/h
  • Ambient temperature operating limits 5 ... 48 °C
  • Head available 260 Pa
  • Power consumption available 2.3 kW
  • Compressor type Spiralny
  • Digital thermostat TX200
  • Fan type Odśrodkowy
  • Type of fluid Woda + Glikol Etylenowy 50%
  • IN / OUT fluid connections 2"
  • IP class 44 IP
  • Current draw 141.5 A
  • Power consumption 84000 W
  • Nominal head available 3.1 bar
  • Nominal / maximum fluid flow rate 150 ... 300 l/min
  • Pump type Odśrodkowy
  • Quantity 3 no.
  • Number of circuits 6 - 2 no.
  • Rated Cooling Capacity 34800 W
  • Refrigerant gas R404A HFC
  • Secondary supply voltage 24 V AC V
  • Adjustable fluid temperature range -30 ... -5 °C
  • Storage tank capacity 160 l
  • Temperature accuracy /- 1 K
  • Net weight (approximate) 720 kg
