TCI91 60Hz chillers with immersion coil
  • TCI91 60Hz chillers with immersion coil
  • TCI91 60Hz chillers with immersion coil

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

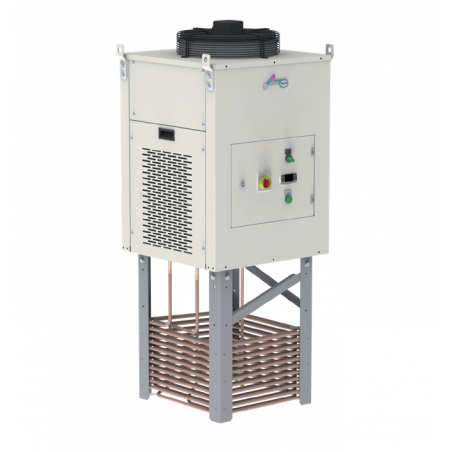

TCI91 60Hz chillers with immersion coil

  • TCI91 60Hz
  • Supply voltage 400/460V (+/-10%) 3ph 50/60Hz V ph Hz
  • Width 550 mm
  • Height 1432 mm
  • Depth 550 mm
  • Frequency 60 Hz
  • Sound pressure level 57 dB(A)
  • Air flow rate (Axial fan) 2000 m3/h
  • Ambient temperature operating limits -5 .. 45 °C
  • Compressor type Spiralny
  • Digital thermostat TX110
  • Fan type Osiowy
  • IP class 44 IP
  • Current draw 6.9 A
  • Power consumption 3600 W
  • Minimum fluid flow (emulsion / oil) 40 ... 60 l/min
  • Minimum volume in the tank (emulsion / oil) 60 ... 100 l.
  • Quantity 1 no.
  • Number of circuits 1 - 1 no.
  • Rated Cooling Capacity 11000 W
  • Refrigerant gas R134a HFC
  • Secondary supply voltage 230V-24V AC V
  • Adjustable fluid temperature range 15 / 25 Woda lub emulsja max 5 cSt - 40°C 20 / 30 olej mineralny 32 cSt - 40°C °C
  • Temperature accuracy /- 1 K
  • Net weight (approximate) 150 kg
