Manufacturer: SEIFERT mtm SYSTEM

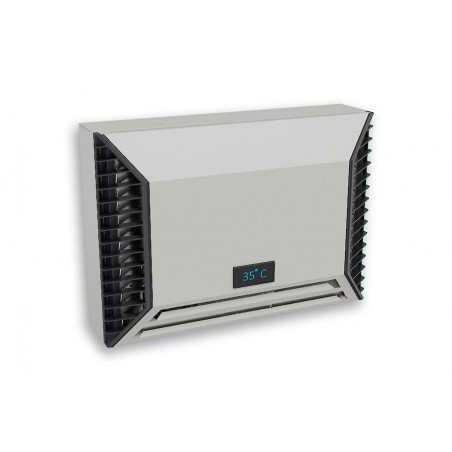

850510001 cabinet refrigerator - kg 8505-120V

  • 850510001
  • Dimensions 370 x 520 x 155 (60+95) mm
  • Working temp. range 10°C - 60°C
  • Voltage frequency 120 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 13 A
  • Max. Current 4.8 A
  • Max. Power 580 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 550 W @ 50 Hz 550 W @ 60 Hz
  • Cooling capacity of L35L50 375 W @ 50 Hz 375 W @ 60 Hz
  • Compressor Tłok obrotowy
  • Refrigerant Charge 98 g / 3.46 oz
  • High / Low Pressure 28 / 6 bar 406 / 88 psi
  • Current L35L35 4.7 A @ 50 Hz 3.7 A @ 60 Hz
  • Nominal power L35L35 435 W @ 50 Hz 405 W @ 60 Hz
  • UL temperature range 10°C - 55°C
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 200 / 408 m³/h Obieg powietrza szafy - 122 / 180 m³/h
  • Weight 16 kg
Features
modern industrial design
compact size for horizontal installation
enhanced IP protection class of IP56 / UL Type 4
built-in electrical condensate evaporator
maintanence free
wall mounted or recessed installation
Brand Name SoliTherm SlimLIne Pro
Order Number 850510001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 56 / Type 12, 3, 3R, 4
Approvals CE, cURus, cULus
