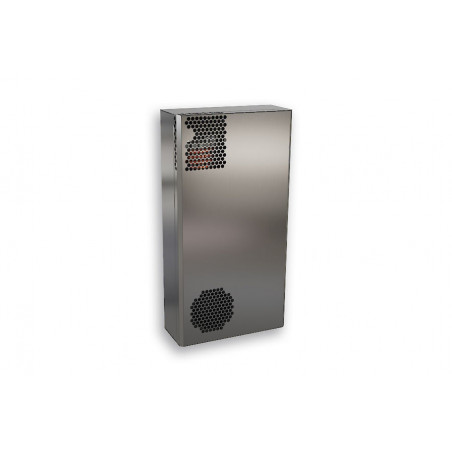

Filterless enclosure cooling unit 4266002
  • Filterless enclosure cooling unit 4266002

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 4266002

  • 4266002
  • Dimensions 520 x 270 x 110 (25+85) mm
  • Working temp. range 10°C - +50°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 3.2 A
  • Max. Current 2.3 A
  • Max. Power 375 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 320 W @ 50 Hz 330 W @ 60 Hz
  • Cooling capacity of L35L50 140 W @ 50 Hz 150 W @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 105 g / 3.7 oz
  • High / Low Pressure 20 / 13 bar 290 / 188 psig
  • Cut Out Dimension 501 x 251 mm
  • Current L35L35 1.5 A @ 50 Hz 1.6 A @ 60 Hz
  • Nominal power L35L35 315 W @ 50 Hz 335 W @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 170 / 250 m³/h Obieg powietrza szafy - 125 / 250 m³/h
  • Weight 13 kg
Features
only 110 mm deep, ideal for smaller enclosures
protection class IP 54
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLine
Order Number 4266002
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 54
Approvals CE, cURus, cULus
