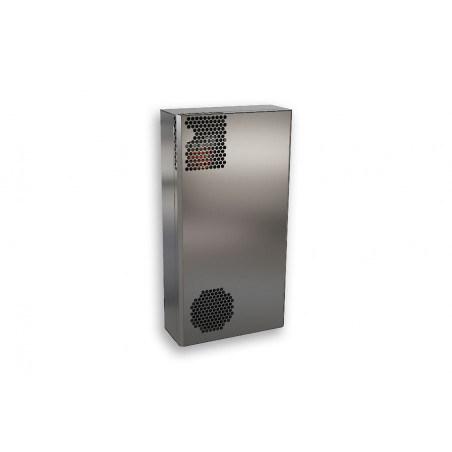

Filterless enclosure cooling unit 4266102
  • Filterless enclosure cooling unit 4266102

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 4266102

  • 4266102
  • Dimensions 520 x 270 x 110 (25+85) mm
  • Working temp. range 10°C - +50°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 7.1 A
  • Max. Current 4.2 A
  • Max. Power 375 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 330 W
  • Cooling capacity of L35L50 150 W
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 96 g / 3.4 oz
  • High / Low Pressure 35 / 30 bar 250 / 220 psig
  • Cut Out Dimension 501 x 251 mm
  • Current L35L35 3.2 A
  • Nominal power L35L35 315 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 170 m³/h Obieg powietrza szafy - 125 m³/h
  • Weight 13 kg
Features
only 110 mm deep, ideal for smaller enclosures
protection class IP 54
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLine
Order Number 4266102
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 54
Approvals CE, cURus, cULus
