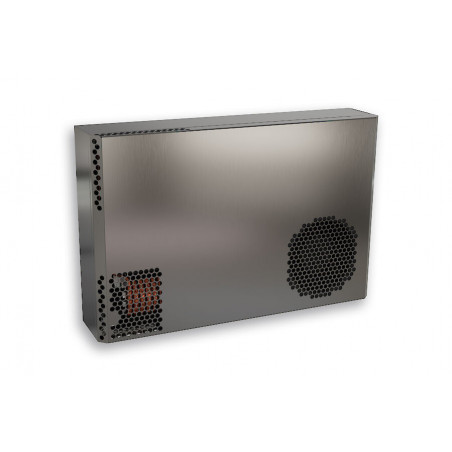

Filterless enclosure cooling unit 4267102
  • Filterless enclosure cooling unit 4267102

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 4267102

  • 4267102
  • Dimensions 340 x 520 x 110 (25+85) mm
  • Working temp. range 10°C - +50°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 7.4 A
  • Max. Current 3.6 A
  • Max. Power 410 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 425 W
  • Cooling capacity of L35L50 195 W
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 100 g / 3.53 oz
  • High / Low Pressure 27 / 15 bar 391 / 220 psig
  • Cut Out Dimension 321 x 501 mm
  • Current L35L35 3.2 A
  • Nominal power L35L35 350 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 215 / 450 m³/h Obieg powietrza szafy - 115 / 250 m³/h
  • Weight 14.8 kg
Features
only 110 mm deep, for horizontal Installation
protection class IP 54
completly filterless, virtually maintenance free
wall mounted or recessed
Brand Name SoliTherm SlimLIne
Order Number 4267102
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 54
Approvals CE, cURus, cULus
