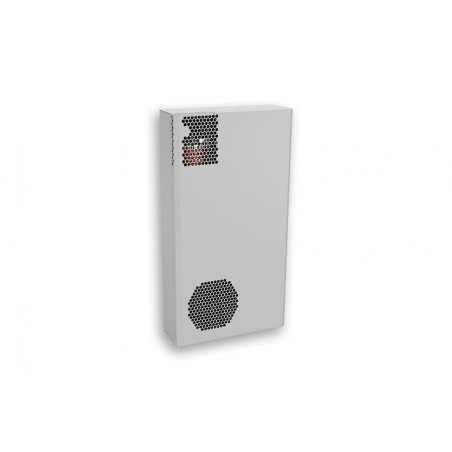

Filterless enclosure cooling unit 42691001
  • Filterless enclosure cooling unit 42691001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 42691001

  • 42691001
  • Dimensions 600 x 320 x 110 (25+85) mm
  • Working temp. range 10°C - +50°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 14.6 A
  • Max. Current 5.3 A
  • Max. Power 550 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 520 W
  • Cooling capacity of L35L50 180 W
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 147 g / 5.2 oz
  • High / Low Pressure 17 / 15 bar 250 / 220 psig
  • Cut Out Dimension 581 x 301 mm
  • Current L35L35 4.5 A
  • Nominal power L35L35 475 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 250 / 650 m³/h Obieg powietrza szafy - 125 / 250 m³/h
  • Weight 15.8 kg
Features
only 110 mm deep,ideal for smaller enclosures
protection class IP 54
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 42691001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
