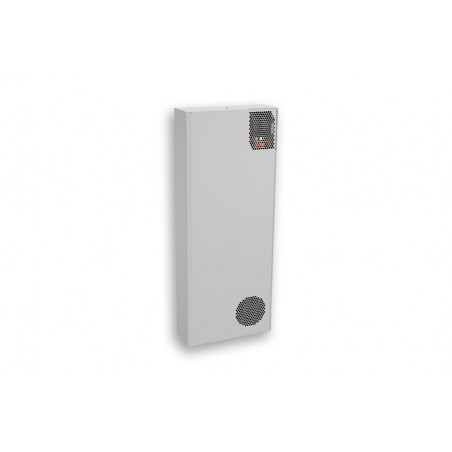

Filterless enclosure cooling unit 42710001
  • Filterless enclosure cooling unit 42710001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 42710001

  • 42710001
  • Dimensions 980 x 395 x 145 (25+120) mm
  • Working temp. range 10°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 15.5 A
  • Max. Current 4.3 A
  • Max. Power 850 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 820 W @ 50 Hz 885 W @ 60 Hz
  • Cooling capacity of L35L50 480 W @ 50 Hz 530 W @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 280 g / 9.9 oz
  • High / Low Pressure 37 / 9.6 bar 406 / 148 psig
  • Cut Out Dimension 961 x 376 mm
  • Current L35L35 3.3 A @ 50 Hz 3.7 A @ 60 Hz
  • Nominal power L35L35 660 W @ 50 Hz 760 W @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 320 / 650 m³/h Obieg powietrza szafy - 290 / 550 m³/h
  • Weight 33 kg
Features
protection class IP 54
integrated condensate evaporation
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 42710001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
