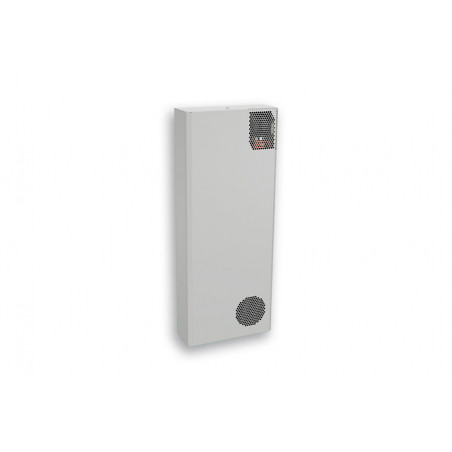

42711001 Overfilter air conditioner. Control cabinet - KG 4271-120V
  • 42711001 Overfilter air conditioner. Control cabinet - KG 4271-120V

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

42711001 Overfilter air conditioner. Control cabinet - KG 4271-120V

  • 42711001
  • Dimensions 980 x 395 x 145 (25+120) mm
  • Working temp. range 10°C - +55°C
  • Voltage frequency 120 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 37 A
  • Max. Current 8.7 A
  • Max. Power 905 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 820 W @ 50 Hz 885 W @ 60 Hz
  • Cooling capacity of L35L50 480 W @ 50 Hz 530 W @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 280 g / 9.9 oz
  • High / Low Pressure 37 / 9.6 bar 536 / 140 psig
  • Cut Out Dimension 961 x 376 mm
  • Current L35L35 6.6 A @ 50 Hz 7.0 A @ 60 Hz
  • Nominal power L35L35 660 W @ 50 Hz 760 W @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 320 / 650 m³/h Obieg powietrza szafy - 290 / 550 m³/h
  • Weight 34 kg
Features
protection class IP 54
integrated condensate evaporation
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 42711001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
