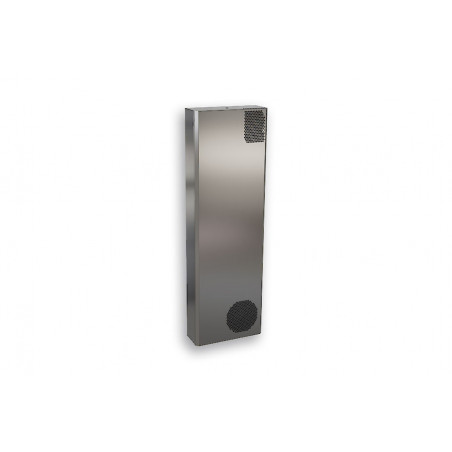

Filterless enclosure cooling unit 4272002
  • Filterless enclosure cooling unit 4272002

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 4272002

  • 4272002
  • Dimensions 1,250 x 395 x 145 (25+120) mm
  • Working temp. range 10°C -+ 55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 15.5 A
  • Max. Current 4.5 A
  • Max. Power 1.04 kW
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 1.1 kW @ 50 Hz 1.2 kW @ 60 Hz
  • Cooling capacity of L35L50 850 W @ 50 Hz 870 W @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 400 g / 14.1 oz
  • High / Low Pressure 37 / 9.6 bar 536 / 140 psig
  • Cut Out Dimension 1,231 x 376 mm
  • Current L35L35 3.4 A @ 50 Hz 4.1 A @ 60 Hz
  • Nominal power L35L35 740 W @ 50 Hz 865 W @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 430 / 1200 m³/h Obieg powietrza szafy - 200 / 550 m³/h
  • Weight 40 kg
Features
protection class IP 54
integrated condensate evaporation
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 4272002
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 54
Approvals CE, cURus, cULus
