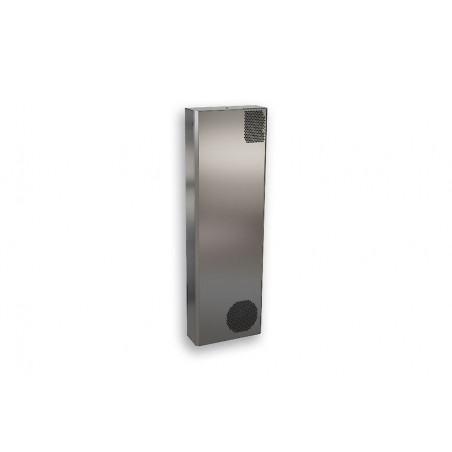

Filterless enclosure cooling unit 4272202
  • Filterless enclosure cooling unit 4272202

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 4272202

  • 4272202
  • Dimensions 1,250 x 395 x 145 (25+120) mm
  • Working temp. range 10°C -+ 55°C
  • Voltage frequency 380-415 V 50 Hz 3~ 400-460 V 60 Hz 3~
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 8.2 A
  • Max. Current 1.8 A
  • Max. Power 1.04 kW
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 1.1 kW @ 50 Hz 1.2 kW @ 60 Hz
  • Cooling capacity of L35L50 850 W @ 50 Hz 870 W @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 360 g / 12.7 oz
  • High / Low Pressure 37 / 9.6 bar 580 / 148 psig
  • Cut Out Dimension 1,231 x 376 mm
  • Current L35L35 1.6 A @ 50 Hz 1.5 A @ 60 Hz
  • Nominal power L35L35 830 W @ 50 Hz 850 W @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 430 / 1200 m³/h Obieg powietrza szafy - 200 / 550 m³/h
  • Weight 41 kg
Features
protection class IP 54
integrated condensate evaporation
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 4272202
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 54
Note 400 V / 3~ units do not need additional MP
Approvals CE, cURus, cULus
