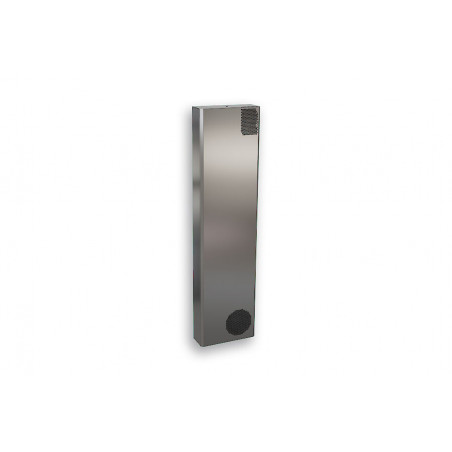

Filterless enclosure cooling unit 42740001
  • Filterless enclosure cooling unit 42740001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Filterless enclosure cooling unit 42740001

  • 42740001
  • Dimensions 1,550 x 395 x 145 (25+120) mm
  • Working temp. range 10°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 22 A
  • Max. Current 7:00 AM
  • Max. Power 1.58 kW
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 1.5 kW @ 50 Hz 1.5 kW @ 60 Hz
  • Cooling capacity of L35L50 1.2 kW
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 530 g / 18.7 oz
  • High / Low Pressure 37 / 9.6 bar 536 / 140 psig
  • Cut Out Dimension 1,531 x 376 mm
  • Current L35L35 4.3 A @ 50 Hz 5.5 A @ 60 Hz
  • Nominal power L35L35 1.00 kW @ 50 Hz 1.23 kW @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 430 / 1200 m³/h Obieg powietrza szafy - 200 / 850 m³/h
  • Weight 50 kg
Features
protection class IP 54
integrated condensate evaporation
completely filterless, virtually maintenance free
wall mounted or recessed
NEMA 4X covers for stainless steel models
Brand Name SoliTherm SlimLIne
Order Number 42740001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
