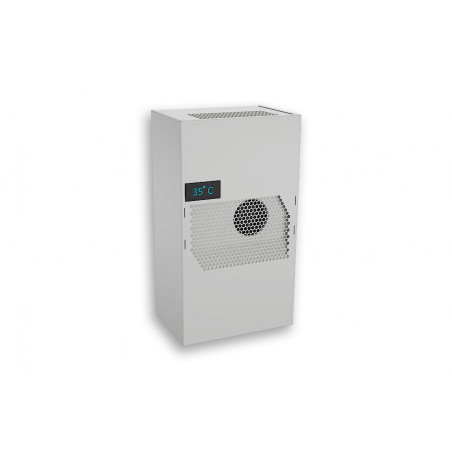

COMPACT INDOOR 43042001
  • COMPACT INDOOR 43042001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

COMPACT INDOOR 43042001

  • 43042001
  • Dimensions 501.6 x 280 x 200 mm
  • Rated current 440 W
  • Working temp. range 10°C - +55°C
  • Voltage frequency 400/460 V ~ 50/60 Hz 2~
  • Mounting methods Zewnętrzny
  • Starting current 3.8 A
  • Max. Current 1.4 A
  • Max. Power 550 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 320 W @ 50 Hz 360 W @ 60 Hz
  • Cooling capacity of L35L50 200 W @ 50 Hz 220 W @ 60 Hz
  • Compressor Sprężarka tłokowa
  • Refrigerant Charge 110 g / 3.9 oz
  • High / Low Pressure 25 / 6 bar 365 / 88 psig
  • Cut Out Dimension 480 x 240 mm
  • Current L35L35 1.1 A @ 50 Hz 1.0 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 90 / 250 m³/h Obieg powietrza szafy - 115 / 136 m³/h
  • Weight 26 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43042001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
