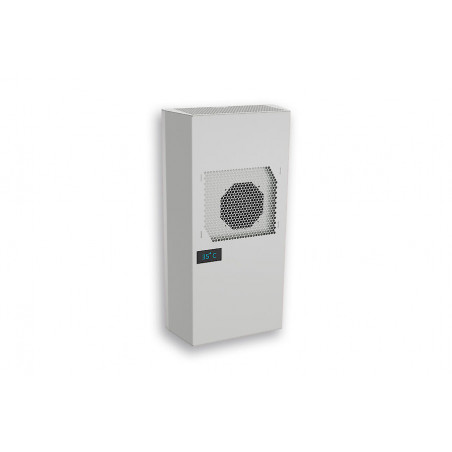

43080081 Air conditioner for control cabinets - KG 4308-230V for installation
  • 43080081 Air conditioner for control cabinets - KG 4308-230V for installation

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

43080081 Air conditioner for control cabinets - KG 4308-230V for installation

  • 43080081
  • Dimensions 715 x 372 x 260 (170+90) mm
  • Rated current 410 W @ 50 Hz 490 W @ 60 Hz
  • Working temp. range 10°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Wpuszczany
  • Starting current 10.1 A
  • Max. Current 3.8 A
  • Max. Power 780 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 750 W @ 50 Hz 780 W @ 60 Hz
  • Cooling capacity of L35L50 580 W @ 50 Hz 610 W @ 60 Hz
  • Compressor Sprężarka tłokowa
  • Refrigerant Charge 230 g / 8.1 oz
  • High / Low Pressure 22.8 / 5.2 bar 330 / 75 psig
  • Cut Out Dimension 316 x 654 mm
  • Current L35L35 2.3 A @ 50 Hz 2.5 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 435 / 550 m³/h Obieg powietrza szafy - 200 / 250 m³/h
  • Weight 27.7 Kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43080081
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
