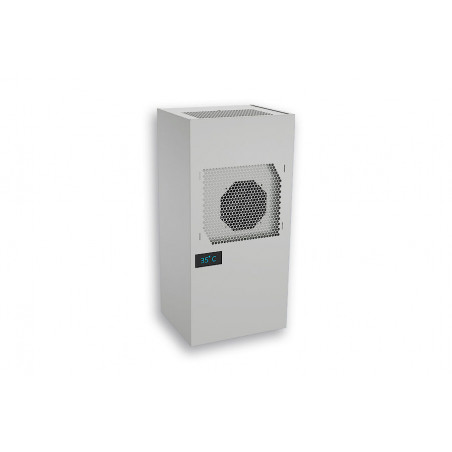

43081001 Air conditioner control cabinet - KG 4308-120V
  • 43081001 Air conditioner control cabinet - KG 4308-120V

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

43081001 Air conditioner control cabinet - KG 4308-120V

  • 43081001
  • Dimensions 651.4 x 315 x 260 mm
  • Rated current 540 W
  • Working temp. range 10°C - +55°C
  • Voltage frequency 120 V ~ 50/60 Hz
  • Mounting methods Naścienny
  • Starting current 20.5 A
  • Max. Current 6.4 A
  • Max. Power 860 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 780 W
  • Cooling capacity of L35L50 510 W
  • Compressor Sprężarka tłokowa
  • Cut Out Dimension 635 x 275 mm
  • Current L35L35 5.8 A
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 435 / 550 m³/h Obieg powietrza szafy - 200 / 250 m³/h
  • Weight 33.7 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43081001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
