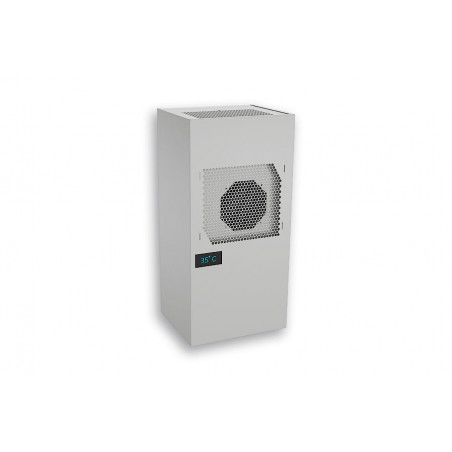

COMPACT INDOOR 43092001
  • COMPACT INDOOR 43092001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

COMPACT INDOOR 43092001

  • 43092001
  • Dimensions 651.4 x 315 x 260 mm
  • Rated current 640 W
  • Working temp. range 10°C - +55°C
  • Voltage frequency 400 / 460 V - 50/60 Hz 2~
  • Mounting methods Naścienny
  • Starting current 5.1 A
  • Max. Current 2.6 A
  • Max. Power 870 W
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 850 W @ 50 Hz 880 W @ 60 Hz
  • Cooling capacity of L35L50 640 W @ 50 Hz 665 W @ 60 Hz
  • Compressor Sprężarka tłokowa
  • Refrigerant Charge 180 g / 6.3 oz
  • High / Low Pressure 29.5 / 6 bar 425 / 88 psig
  • Cut Out Dimension 635 x 275 mm
  • Current L35L35 2.0 A @ 50 Hz 1.8 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 435 / 550 m³/h Obieg powietrza szafy - 200 / 250 m³/h
  • Weight 36 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43092001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
