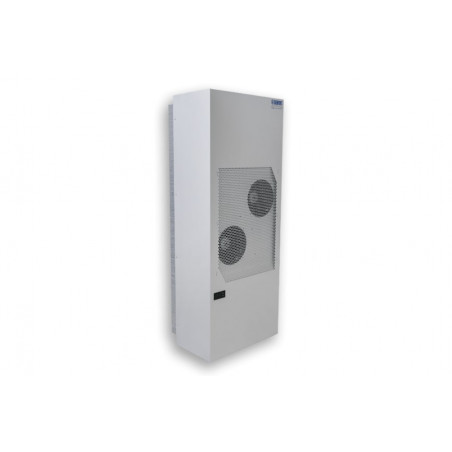

COMPACT INDOOR 43300081
  • COMPACT INDOOR 43300081

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

COMPACT INDOOR 43300081

  • 43300081
  • Dimensions 1,295 x 557 x 340 (250+90) mm
  • Rated current 1,33 kW @ 50 Hz 1,69 kW @ 60 Hz
  • Working temp. range 10°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Wpuszczany
  • Starting current 25.1 A
  • Max. Current 9.2 A
  • Max. Power 1,61 kW @ 50 Hz 2,06 kW @ 60 Hz
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 3 kW @ 50 Hz 3 kW @ 60 Hz
  • Cooling capacity of L35L50 2.38 kW @ 50 Hz 2.51 kW @ 60 Hz
  • Compressor Sprężarka tłokowa
  • Refrigerant Charge 900 g / 31.7 oz
  • High / Low Pressure 29.5 / 6 bar 425 / 88 psig
  • Cut Out Dimension 495 x 1236 mm
  • Current L35L35 5.6 A @ 50 Hz 7.6 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 750 / 1200 m³/h Obieg powietrza szafy - 860 / 1200 m³/h
  • Weight 67.5 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43300081
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
