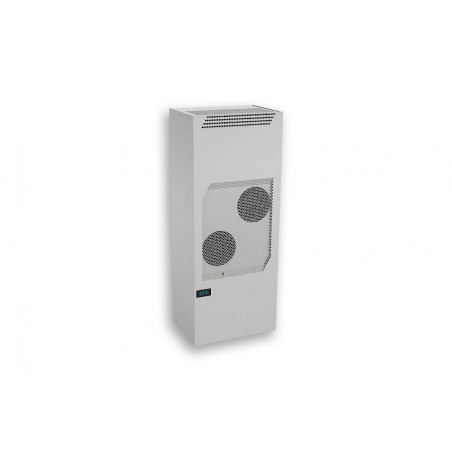

COMPACT INDOOR 43400001
  • COMPACT INDOOR 43400001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

COMPACT INDOOR 43400001

  • 43400001
  • Dimensions 1,230 x 500 x 340 mm
  • Rated current 1.88 kW @ 50 Hz 2.31 kW @ 60 Hz
  • Working temp. range 10°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny
  • Starting current 29.6 A
  • Max. Current 14.2 A
  • Max. Power 2.40 kW @ 50 Hz 3.72 kW @ 60 Hz
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 4 kW @ 50 Hz 4 kW @ 60 Hz
  • Cooling capacity of L35L50 3.18 kW @ 50 Hz 3.36 kW @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 855 g / 30.15 oz
  • High / Low Pressure 28 / 6 bar 406 / 88 psig
  • Cut Out Dimension 1,130 x 430 mm
  • Current L35L35 8.9 A @ 50 Hz 10.2 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 1050 / 1500 m³/h Obieg powietrza szafy - 860 / 1200 m³/h
  • Weight 69 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43400001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
