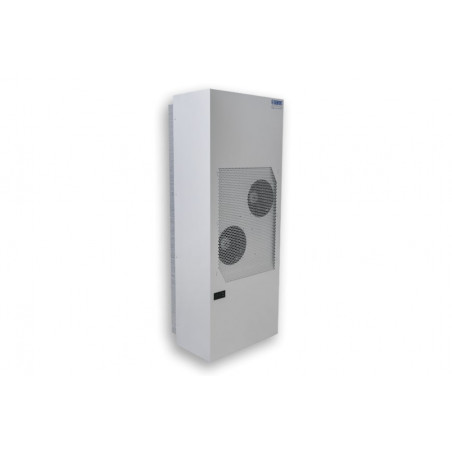

COMPACT INDOOR 43402081
  • COMPACT INDOOR 43402081

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

COMPACT INDOOR 43402081

  • 43402081
  • Dimensions 1,295 x 557 x 340 (250+90) mm
  • Rated current 1.91 kW @ 50 Hz 2.33 kW @ 60 Hz
  • Working temp. range 10°C - +55°C
  • Voltage frequency 380-415 V 50 Hz 3~ 400-460 V 60 Hz 3~
  • Mounting methods Wpuszczany
  • Starting current 8.2 A / 8.5 A
  • Max. Current 4.6 A / 4.4 A
  • Max. Power 2.43 kW @ 50 Hz 3.30 kW @ 60 Hz
  • Refrigerant / GWP R134a / 1430
  • Cooling capacity of L35L35 4 kW @ 50 Hz 4 kW @ 60 Hz
  • Cooling capacity of L35L50 3.18 kW @ 50 Hz 3.36 kW @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 810 g / 28.6 oz
  • High / Low Pressure 28 / 6 bar 406 / 88 psig
  • Cut Out Dimension 1,130 x 430 mm
  • Current L35L35 2.9 A @ 50 Hz 2.7 A @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 1050 / 1500 m³/h Obieg powietrza szafy - 860 / 1200 m³/h
  • Weight 72.5 kg
Features
the nano-coated condensor allows a filterless operation
practical maintenance free
adjustable electronic controller with color display
for aggressive or polluted environments, upgradeable filter options
optional condensate evaporation
wall mounted or recessed
Brand Name SoliTherm ComPact
Order Number 43402081
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus, cULus
