Manufacturer: SEIFERT mtm SYSTEM

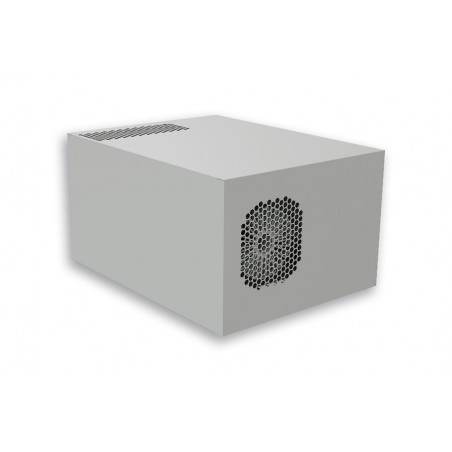

Cabinet cooling unit - roof mounted 44820001

  • 44820001
  • Dimensions 230 x 330 x 430 mm
  • Working temp. range 10°C - +50°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Montaż na dachu
  • Starting current 6.8 A
  • Max. Current 2.8 A
  • Max. Power 630 W
  • Refrigerant / GWP R 134a / 1430
  • Cooling capacity of L35L35 450 W @ 50 Hz 460 W @ 60 Hz
  • Cooling capacity of L35L50 280 W
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 152 g / 5.4 oz
  • High / Low Pressure 35 / 6 bar 508 / 88 psig
  • Cut Out Dimension 142 x 98 mm / 142 x 147.5 mm
  • Current L35L35 2.3 A
  • Nominal power L35L35 475 W @ 50 Hz 530 W @ 60 Hz
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 250 / 650 m³/h Obieg powietrza szafy - 140 / 250 m³/h
  • Weight 23 kg
Features
when no space on enclosure sides or doors is available
maximum cooling power with minimum space
completely filterless, virtually maintenance free
energy efficient and environmentally friendly
Brand Name SoliTherm TOP
Order Number 44820001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus
