Manufacturer: SEIFERT mtm SYSTEM

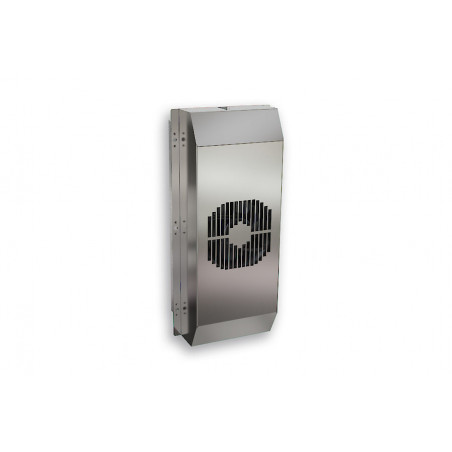

Thermoelectric cooling unit 3152303

  • 3152303
  • Dimensions 400 x 180 x 171 (81+90) mm
  • Working temp. range -20°C - +65°C
  • Voltage frequency 24 V DC
  • Mounting methods Wpuszczany
  • Starting current 11:00 AM
  • Max. Current 7.5 A
  • Max. Power 180 W
  • Cooling capacity of L35L35 150 W
  • Cut Out Dimension 370 x 155 mm
  • Current L35L35 6.3 A
  • Nominal power L35L35 170 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 120 / 260 m³/h Obieg powietrza szafy - 60 / 170 m³/h
  • Weight 9 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Order Number 3152303
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
