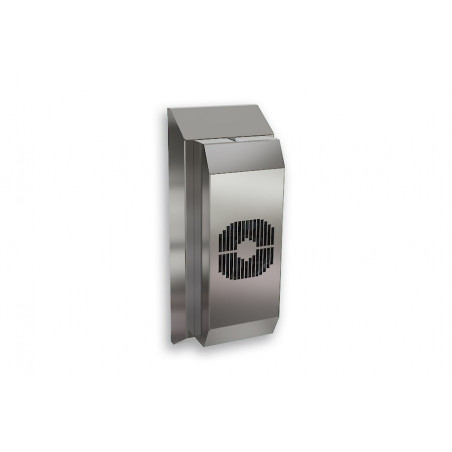

Thermoelectric cooling unit 3200305
  • Thermoelectric cooling unit 3200305

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Thermoelectric cooling unit 3200305

  • 3200305
  • Dimensions 500 x 188 x 174 mm
  • Working temp. range -20°C - +65°C
  • Voltage frequency 24 V DC
  • Mounting methods Naścienny (z ramą)
  • Starting current 17.1 A
  • Max. Current 13.5 A
  • Max. Power 324 W
  • Cooling capacity of L35L35 200 W
  • Cut Out Dimension 469 x 155 mm
  • Current L35L35 9.4 A
  • Nominal power L35L35 226 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 120 / 260 m³/h Obieg powietrza szafy - 120 / 260 m³/h
  • Weight 13.7 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Brand Name SoliTherm Peltier
Order Number 3200305
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
