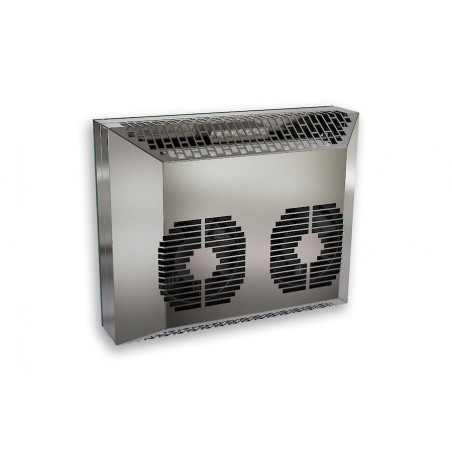

Thermoelectric cooling unit 6105303
  • Thermoelectric cooling unit 6105303

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Thermoelectric cooling unit 6105303

  • 6105303
  • Dimensions 280 X 350 x 165 (113+52) mm
  • Working temp. range -20°C - +65°C
  • Voltage frequency 120 - 230 V ~ 50/60 Hz
  • Mounting methods Wpuszczany
  • Starting current 1.6 A @ 120 V 0.8 A @ 230 V
  • Max. Current 1.1 A @ 120 V 0.6 A @ 230 V
  • Max. Power 131 W
  • Cooling capacity of L35L35 100 W
  • Cut Out Dimension 350 x 280 mm
  • Current L35L35 1.0 A @ 120 V 0.5 A @ 230 V
  • Nominal power L35L35 125 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 128 / 213 m³/h Obieg powietrza szafy - 46 / 90 m³/h
  • Weight 9.4 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
AC wide voltage range
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Brand Name SoliTherm Peltier
Order Number 6105303
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
