Thermoelectric cooling unit 6155303
  • Thermoelectric cooling unit 6155303

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

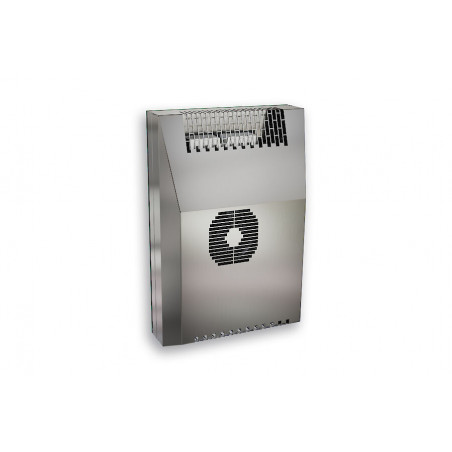

Thermoelectric cooling unit 6155303

  • 6155303
  • Dimensions 500 x 330 x 196 (130+66) mm
  • Working temp. range -20°C - +65°C
  • Voltage frequency 120 - 230 V ~ 50/60 Hz
  • Mounting methods Wpuszczany
  • Starting current 2.1 A @ 120 V 1.1 A @ 230 V
  • Max. Current 1.5 A @ 120 V 0.8 A @ 230 V
  • Max. Power 180 W
  • Cooling capacity of L35L35 150 W
  • Cut Out Dimension 244 x 428 mm
  • Current L35L35 1.4 A @ 120 V 0.7 A @ 230 V
  • Nominal power L35L35 170 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 120 / 260 m³/h Obieg powietrza szafy - 60 / 170 m³/h
  • Weight 18 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
AC wide voltage range
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Brand Name SoliTherm Peltier
Order Number 6155303
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
