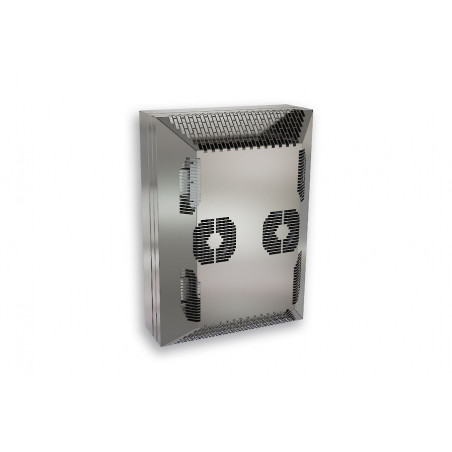

Thermoelectric cooling unit 6405305
  • Thermoelectric cooling unit 6405305

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Thermoelectric cooling unit 6405305

  • 6405305
  • Dimensions 600 x 432 x 207.5 mm
  • Working temp. range -20°C - +65°C
  • Voltage frequency 120 - 230 V ~ 50/60 Hz
  • Mounting methods Naścienny (z ramą)
  • Starting current 6.5 A @ 120 V 3.4 A @ 230 V
  • Max. Current 4.5 A @ 120 V 2.3 A @ 230 V
  • Max. Power 537 W
  • Cooling capacity of L35L35 400 W
  • Cut Out Dimension 382 x 550 mm
  • Current L35L35 4.1 A @ 120 V 2.1 A @ 230 V
  • Nominal power L35L35 490 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 240 / 325 m³/h Obieg powietrza szafy - 240 / 325 m³/h
  • Weight 37 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
AC wide voltage range
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Brand Name SoliTherm Peltier
Order Number 6405305
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Dimensions 600 x 432 x 207.5 mm
  • Working temp. range -20°C - +65°C
  • Voltage frequency 120 - 230 V ~ 50/60 Hz
  • Mounting methods Naścienny (z ramą)
  • Starting current 6.5 A @ 120 V 3.4 A @ 230 V
  • Max. Current 4.5 A @ 120 V 2.3 A @ 230 V
  • Max. Power 537 W
  • Cooling capacity of L35L35 400 W
  • Cut Out Dimension 382 x 550 mm
  • Current L35L35 4.1 A @ 120 V 2.1 A @ 230 V
  • Nominal power L35L35 490 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 240 / 325 m³/h Obieg powietrza szafy - 240 / 325 m³/h
  • Weight 37 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
AC wide voltage range
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Brand Name SoliTherm Peltier
Order Number 6405305
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
