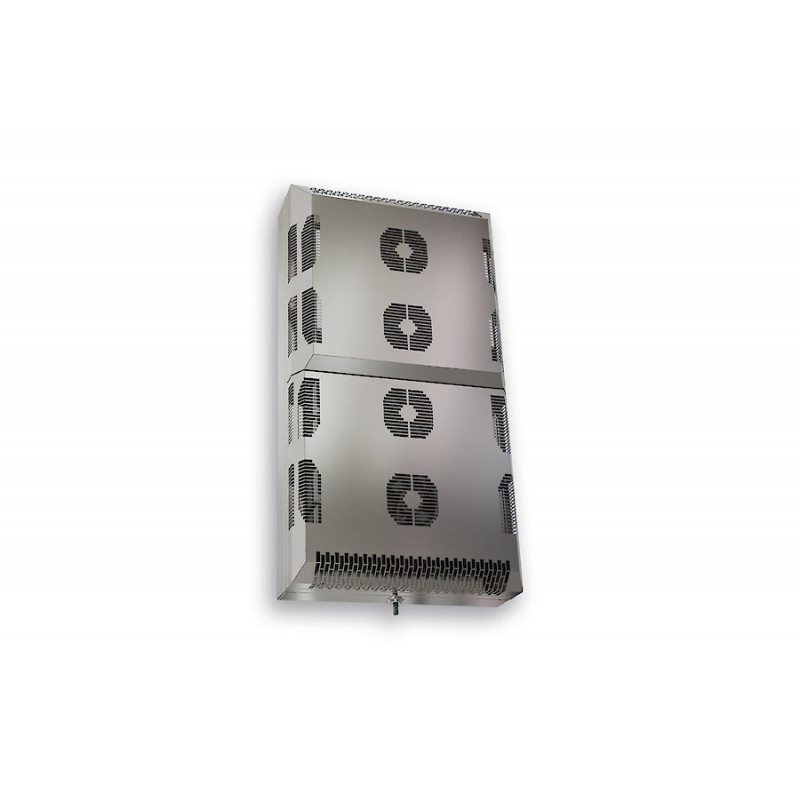

Thermoelectric cooling unit 6805305
  • Thermoelectric cooling unit 6805305

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Thermoelectric cooling unit 6805305

  • 6805305
  • Dimensions 972 x 514 x 211 mm
  • Working temp. range -20°C- +65°C
  • Voltage frequency 120 - 230 V ~ 50/60 Hz
  • Mounting methods Naścienny (z ramą)
  • Starting current 14 A @ 120 V 8 A @ 230 V
  • Max. Current 9 A @ 120 V 4.7 A @ 230 V
  • Max. Power 1078 W
  • Cooling capacity of L35L35 800 W
  • Cut Out Dimension 464 x 922 mm
  • Current L35L35 8.2 A @ 120 V 4.3 A @ 230 V
  • Nominal power L35L35 979 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 480 / 650 m³/h Obieg powietrza szafy - 480 / 650 m³/h
  • Weight 70 kg
Features
suitable for stainless steel enclosures and control panels
for Indoor and Outdoor applications
virtually maintenance free
AC wide voltage range
can be mounted in any position
(depending on the installation the condensate management may need to be adjusted)
Brand Name SoliTherm Peltier
Order Number 6805305
Housing Material Stainless steel AISI 304 (V2A)
Ingress Protection IP 66, NEMA / UL Type 4X
Note The torque for the mounting nuts should be 4.5 Nm.
Approvals CE, cURus
