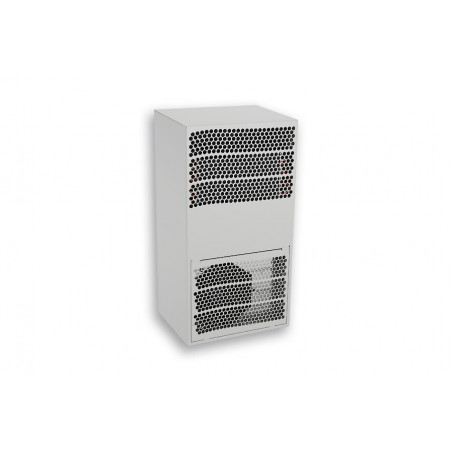

Outdoor cooling unit 570400001
  • Outdoor cooling unit 570400001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Outdoor cooling unit 570400001

  • 570400001
  • Dimensions 480 x 250 x 190 mm
  • Working temp. range -40°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny
  • Starting current 8:00 AM
  • Max. Current 1.5 A
  • Max. Power 325 W
  • Refrigerant / GWP R 134a / 1430
  • Cooling capacity of L35L35 290 W @ 50 Hz 300 W @ 60 Hz
  • Cooling capacity of L35L50 250 W @ 50 Hz 250 W @ 60 Hz
  • Compressor Sprężarka tłokowa rotacyjna
  • Refrigerant Charge 115 g / 4.05 oz
  • High / Low Pressure 25.5 / 4.7 bar 370 / 68 psig
  • Cut Out Dimension 204 x 250 mm
  • Current L35L35 1.3 A
  • Nominal power L35L35 270 W
  • Enclosure Heater 150 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 85 / 300 m³/h Obieg powietrza szafy - 85 / 136 m³/h
  • Weight 15.2 kg
Features
for most Outdoor applications suitable without filter
stainless steel models comply to NEMA / UL Type 4X
adjustable electronic controller with display (rear)
condensate evaporation as a standard
virtually maintenance free
Brand Name SoliTherm Outdoor
Order Number 570400001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 56 / Type 12, 3, 3R, 4
Approvals CE, cURus, cULus
UL File Nummer cURus (SA32278), cULus (E498756)
