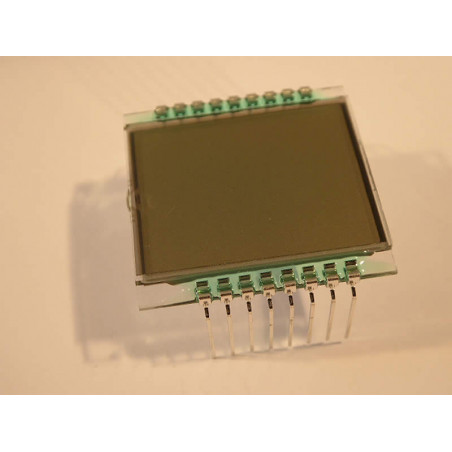

DE 334-TU-30/13.0 LCD-7-segment display
  • DE 334-TU-30/13.0 LCD-7-segment display

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Display Elektronik GmbH

DE 334-TU-30/13.0 LCD-7-segment display

  • DE 334-TU-30/13,0
  • Working temperature -40°C to +90°C
  • Operating mode TRANSREFLEKTYWNY
  • Working voltage 3-5 Volt
  • Display format SŁUPKOWY
  • Displayed information 16 SEGMENTOWY
  • Character height [mm] Dec-74
  • Display area [mm] Width/Height 26.70 x 20.10
  • Glass size [mm] Width/Height 31.10 x 30.48
  • PIN LENGTH [mm] 13
Standard 7-segment displays with a wide range of operating temperatures. Available transmission, reflective or trans-reflective versions. Transmission displays are equipped with backlight, active pixels are always dark and inactive bright. Transmission displays are usually used together with active matrices, although sometimes passive transmission displays are used, e.g. in watches with tilting displays. The reflective display does not have a backlight, which results in poor visibility in the light. Its advantage is extremely low energy consumption. Most often it can be found, for example, in calculators and watches. The transition version between the transmission and reflective display is the transreflective display, which has the advantages of both modes. It can work with the backlight on as transmission displays, high image brightness is then provided. It can also work in reflective mode while changing energy consumption.
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Working temperature -40°C to +90°C
  • Operating mode TRANSREFLEKTYWNY
  • Working voltage 3-5 Volt
  • Display format SŁUPKOWY
  • Displayed information 16 SEGMENTOWY
  • Character height [mm] Dec-74
  • Display area [mm] Width/Height 26.70 x 20.10
  • Glass size [mm] Width/Height 31.10 x 30.48
  • PIN LENGTH [mm] 13
Standard 7-segment displays with a wide range of operating temperatures. Available transmission, reflective or trans-reflective versions. Transmission displays are equipped with backlight, active pixels are always dark and inactive bright. Transmission displays are usually used together with active matrices, although sometimes passive transmission displays are used, e.g. in watches with tilting displays. The reflective display does not have a backlight, which results in poor visibility in the light. Its advantage is extremely low energy consumption. Most often it can be found, for example, in calculators and watches. The transition version between the transmission and reflective display is the transreflective display, which has the advantages of both modes. It can work with the backlight on as transmission displays, high image brightness is then provided. It can also work in reflective mode while changing energy consumption.
