Manufacturer: RAFI

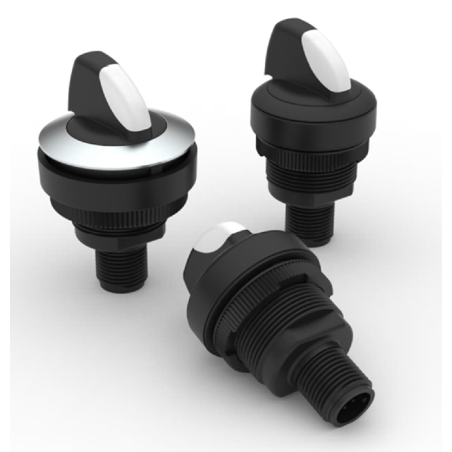

RAMO S selector switches

RAMO S key switches offer a solution for every application with a wide range of contact functions, rotation angles, activation functions, trigger positions, and closures. Like all RAMO buttons, the connection is simple with Plug & Play technology, eliminating the need for manual wiring - using M12 connectors.

Features:

Contacts 1 NO / 2 NO / 1 NO + 1 NC
Backlight SMT LED
Service Life 200,000 cycles
Maximum Rated Voltage 32 V DC
LED Voltage 24 V DC
Protection Level IP65 (front)
IP65 (rear)
Rotation Angle Various versions available
Connector M12, 4-pole, a-coded
M12, 8-pole, a-coded
