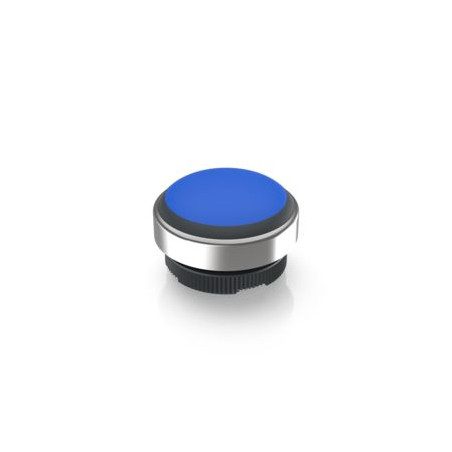

RAFIX 22 FSR Blue button, round, temporary
  • RAFIX 22 FSR Blue button, round, temporary

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: RAFI

RAFIX 22 FSR Blue button, round, temporary

  • 1.30.280.001/2601
  • Diameter 22,3mm
  • Colour niebieski
  • Function temporary
- an invisible button with a protective shield, impossible to backlit.
- Protective cover strengthens protection against liquids, dirt and splashes.
- low mounting depth: 9.2 mm (for a printed board) or 27 mm (for plug connection).
- ideal for gloves.
- Types of connections: connection to the printed board (PCB) or plug connection (QC).
- PCB switching elements minimize assembly errors.
- switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA).
- Thanks to the adapter of the Micon 5 touch switch, you can use touch switches as a switching element.
- protection degree: IP65 at the front.
- labeling and rings on the front in other colors on request.
