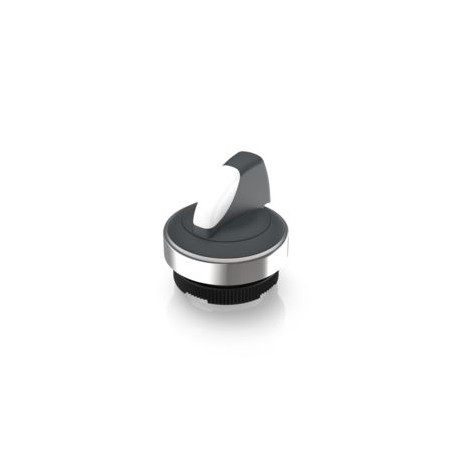

RAFIX 22 FSR Selector switch 1 x 90 ° V, permanent
  • RAFIX 22 FSR Selector switch 1 x 90 ° V, permanent

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: RAFI

RAFIX 22 FSR Selector switch 1 x 90 ° V, permanent

  • 1.30.282.201/2201
  • Diameter 22,3mm
  • Function constant
- illuminating the knob with the SMT LED.
- It is possible to colorfully backlit with colored LEDs.
- low mounting depth: 9.2 mm (for a printed board) or 27 mm (for plug connection).
- Types of connections: connection to the printed board (PCB) or plug connection (QC).
- PCB switching elements minimize assembly errors.
- switching elements with silver contacts (max. 250 V/4 A) or gold contacts (max. 35 V/100 mA).
- protection degree: IP65 at the front.
