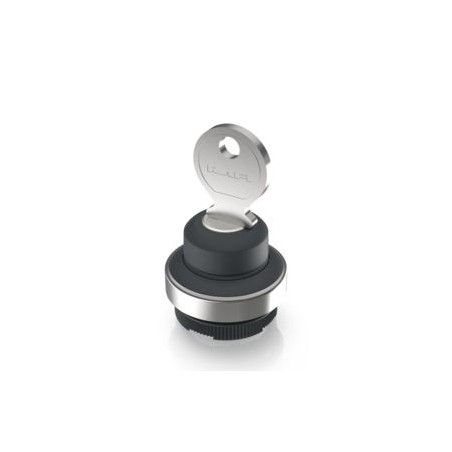

![RAFIX 22 FSR - Key switches RAFIX 22 FSR - Key switches](https://www.dacpol.eu/41998-large_default/54136-rafix-22-fsr-key-switches.jpg)
![RAFIX 22 FSR - Key switches RAFIX 22 FSR - Key switches](https://www.dacpol.eu/41998-large_default/54136-rafix-22-fsr-key-switches.jpg)
Photos are for informational purposes only. View product specification
please use latin characters
RAFIX 22 FSR key switches are equipped with a plastic protective cap that shields against dirt, water, and the risk of icing when closed. Each set includes two keys. The locking systems we use have been designed in accordance with DIN EN 1303 standards by leading lock manufacturers. These are open, mechanical systems that require occasional maintenance by the machine or installation operator depending on environmental conditions.
Switching function | Rotation angle | Catalog number |
Momentary | 1 x 40° | 1.30.285.001/0100 |
Momentary | 2 x 40° | 1.30.285.101/0100 |
Constant | 1 x 90°, L-shaped | 1.30.285.221/0100 |
Constant | 1 x 90°, V-shaped | 1.30.285.321/0100 |
General Information | |
Front ring color | Black |
Collar shape | Round |
Dimensions | |
Collar diameter | 31.3mm |
Height | 45.1mm |
Button hole | 22.3mm |
Mechanical Properties | |
Mounting | Threaded |
Lock type | 001 |
Tightening torque | 1.2Nm |
Maximum switch actuating force | 1.3Nm |
Others | |
Operating temperature range | -40 – 80°C |
IP rating (front side) | IP65 |
ROHS | Yes |
REACH | Yes |
