Joystick SAL2
  • Joystick SAL2

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Sensata

Joystick SAL2

Joystick SAL2

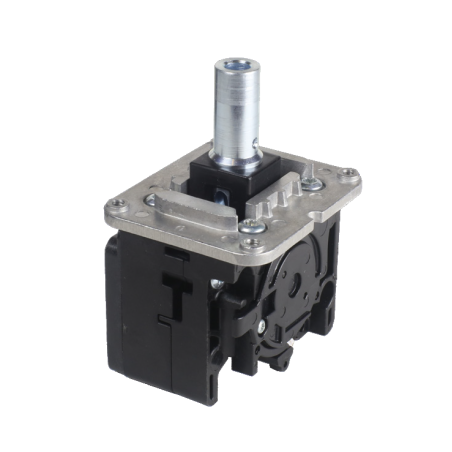

The SAL2 Joystick provides the reliability and long lifespan required in demanding environmental conditions or industrial applications. 3D Hall sensors ensure high accuracy and a stable output signal. Additionally, various types of multifunctional handles are available.

Features

  • Contactless technology utilizing the Hall effect
  • Redundant sensors
  • Lifespan exceeding 10 million cycles (without lock option)
  • 2 sensors per axis
  • Integrated temperature compensation
  • Environmentally protected electronics
  • Standard or custom multifunctional handles
  • Designed for armrests and housings (AJ45)

Custom Modifications

  • Output characteristics
  • Operating force
  • Gate pattern
  • Lever deflection angle
  • Multifunctional handles


System Voltage 12 or 24V
Voltage Range 9-32V
Maximum Current 75 mA at 24V DC
Max. Output Voltage Vsupply – 2.5V DC
PWM Output PW2 500 Hz ± 80 Hz
CAN Bus Output J19 SAE J1939
Other Electrical Features EMI 100 V/m


Lifespan > 10 million cycles
Operating Temperature -40°C to 85°C
Storage Temperature -50°C to 90°C
Max Horizontal Load 1000 Nm
Max Vertical Load 1110 Nm
Max Load (Z-axis) 25 Nm
IP Protection IP 67
