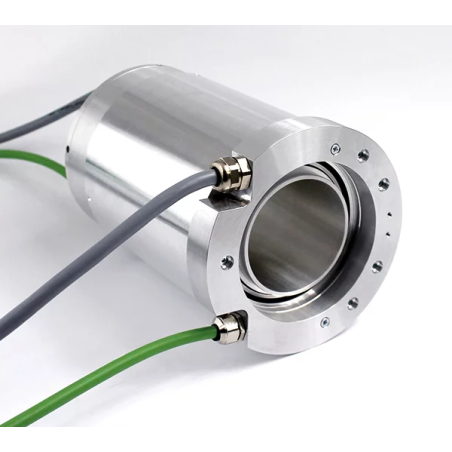

SLIP SC120
  • SLIP SC120

Photos are for informational purposes only. View product specification

please use latin characters

SLIP SC120

SLIP SC120

FACTS

  • Outer diameter: max. 120 mm
  • Inner diameter: max. 70 mm
  • Fieldbusses
  • Fast Ethernet (certified to 100-BaseT CAT5e & Cat6)
  • Flexibily configurable interfaces

ACCESSORIES ON REQUEST

  • Resolver
  • Encoder
  • FORJ
  • Media Rotary Joint

APPLICATION EXAMPLES

  • Machine Tool
  • Packaging Machine
  • Wind Turbine Pitch System

DATA

Number of rings: max. 80
Current per ring: max. 30 A
Voltage: max. 400 VAC
Dielectric strength 2000 VAC
Insulation resistance: >500 MΩ at 500 VDC
Rotation speed: max. 250 rpm
Protection class: IP54 / IP65
Temperature: -20 °C ... +70 °C
Electrical connection: customized (flying leads, cable or connector)
Housing material: Aluminium
Length: L1/L2 on request
