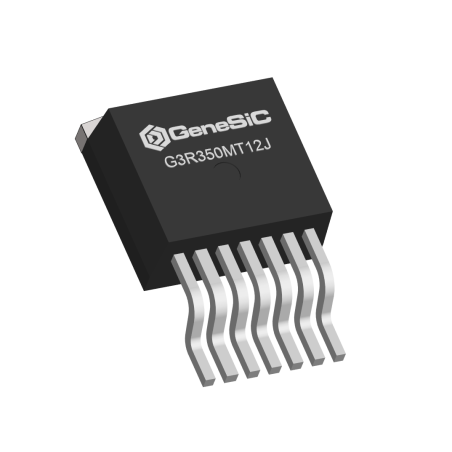

SiC MOSFET transistor G3R350MT12J
  • SiC MOSFET transistor G3R350MT12J

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GeneSiC Semiconductor

SiC MOSFET transistor G3R350MT12J

  • G3R350MT12J
  • Housing type TO-263-7
  • Continous current ID at Tc=25oC 10 A
  • Continous current IC at Tc=100oC
  • RDS(ON) for VGS = 18 V 295 mΩ
  • RDS(ON) for VGS = 15 V 350 mΩ
  • Voltage UDS 1200 V

The "G3R350MT12J" SiC MOSFET transistor is made using GeneSiC's patented Trench-Assisted Planar technology.

Features:

  • Low Temperature Coefficient of RDS(ON)
  • Lower QG and Smaller RG(INT)
  • Low Device Capacitances (COSS, CRSS)
  • LoRing – Electromagnetically Optimazed Design
  • Robust Body Diode with Low VF and Low QRR
  • 100% Avalanche (UIL) Tested

Applications:

  • Solar Inverters
  • EV/HEV Charging
  • Motor Drives
  • High Voltage DC-DC Converters
  • Switched Mode Power Supplies
  • UPS
  • Smart Grid Transmission and Distribution
  • Induction Heating and Welding
