Power panels 3 U / 3.5 U

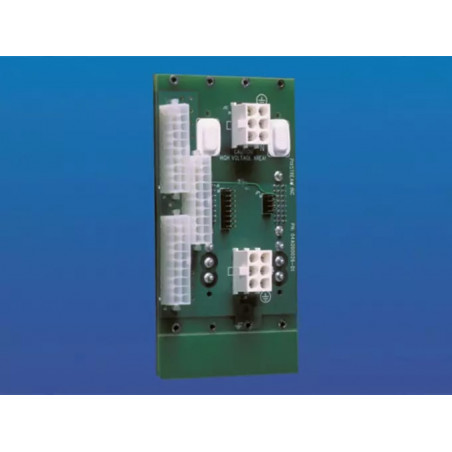

Description of power plates 3 U / 3.5 U

• Tile 3U / 3,5U, 8HP, 16 HP, 24HP
• Designed for use in conjunction with REAR PANELS HEITEC CPCI
• Opportunity 1/2/3 of power supplies to 250W each
• AC / DC connection is carried out via 2 x 3-field connectors
• Output voltages derived in order to supply one or more CPCI rear panels are available together with ATX connectors
• Compliance with PICMG 2.0, PICMG 2.11

Technical characteristics of power plates 3 U / 3.5 U

Possibility to handle 1/2/3 of CPCI power supplies to 250W each. The second power supply can be used as a redundant (power division) or, combining parallel to increase the current.
Input voltages:

• AC input for 2 x 3-field AMP Mate-Nlock (Amp # 350732-1), J12 connector
• Connection via PIN 45, 46, 47, Postronic type
• Maximum charging current Co PIN is 25A, connector matching the cable harness, AMP # 350715
• DC input for 2 x 3-field AMP Mate-Nlock (AMP # 350732-1), J5 connector connected via PIN 46, 47, Postronic type
• Maximum charging current Co PIN is 25A, connector matching the cable harness, AMP # 350715
• Three 20-field ATX compatible connectors for ATX cable harness (connection of the power supply tile to the rear panel CPCI)

Power panel material 3 U / 3.5 U

• Glass fiber epoxy plastic
Compliant with IEC 60 249 (type FR4)
