Manufacturer: Ambrell

Power 20-50 kW, frequency 5-15 kHz

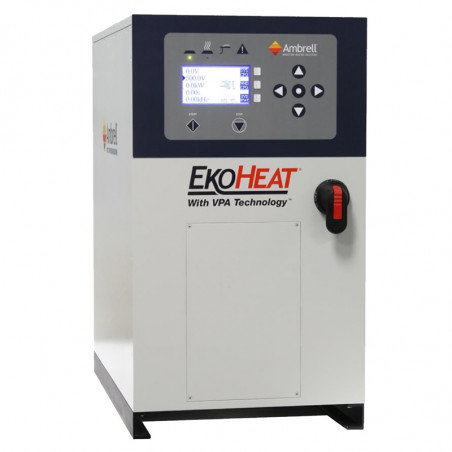

Generators for induction heating: power 20-50 kW, frequency 5-15 kHz

EKOHEAT induction heating systems for the 5 to 15 kHz frequency range provide reliable and repeatable solutions for heating with large coils or for heating larger parts. Typical applications include heating parts that require deeper heat penetration, heat treating steel, preheating for forging of steel, aluminum, copper or brass, and melting in crucibles.

Model
Max Power (kW)
Frequency (kHz)
Line Voltage (V)
Input Max (kVA)
EKOHEAT 20/10
20
5-15
360 - 520, 3 ph
32
EKOHEAT 35/10
35
5-15
360 - 520, 3 ph
41
EKOHEAT 50/10
50
5-15
360 - 520, 3 ph
58

Generators for induction heating EKOHEAT 20 kW - 10 kHz
Max Power: 20 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 32 kVA

Data Sheets:
EN | ES

Generators for induction heating EKOHEAT 35 kW - 10 kHz
Max Power: 35 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 41 kVA

Data Sheets:
EN | ES

Generators for induction heating EKOHEAT 50 kW - 10 kHz
Max Power: 50 kW
Frequency: 5-15 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 58 kVA

Data Sheets:
EN | ES
