Manufacturer: Deeter Electronics Ltd

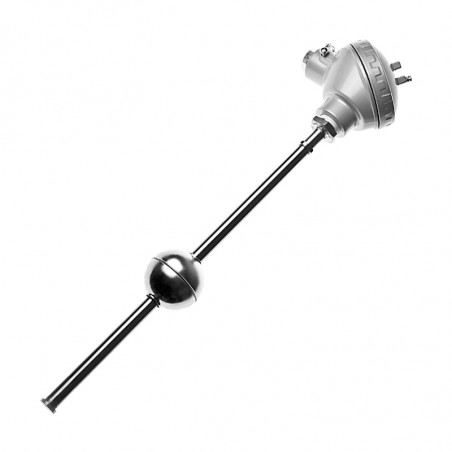

Level sensor with an analog output - LVCS series

Sensor is designed for analogue liquid level measurement. Measurement resolution is 5mm. Sensor output signal is standard current signal 4...20 mA.

Technical parameters

Power supply: 15...24VDC
Analogue output: 4...20mA
Temperature stability: ±2mV/°C
Electrical connection - 4 pole: 2 - power supply, 2 - output
Max. pressure: 3100kPa
Operation temperature: -20 - 120°C

Dimensions [mm]

Type LVCS- 1 LVCS - 2 LVCS - 3 LVCS - 4
L - real measured value 260 520 780 1040
D - minimal container depth 350 610 870 1130
Y - non measurable level 50 50 50 50
X - minimal level 40 40 40 40
float diameter 55 55 55 55
bar diameter 12

CZUJNIKI POZIOMU Z WYJŚCIEM ANALOGOWYM SERII LVCS
