HFS EX 10C02 Level Sensor
  • HFS EX 10C02 Level Sensor

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Deeter Electronics Ltd

HFS EX 10C02 Level Sensor

  • HFS Ex 10C02
  • Housing type Poziomy ATEX
  • Maximum voltage 50 V DC
  • Contacts SPDT 20 W C
  • Terminal 2"
  • Material Stal nierdzewna 316L
  • Sensor type Kontaktron
  • Minimum temperature -20 °C
  • Maximum temperature 120 °C
  • Max Pressure 30 Bar

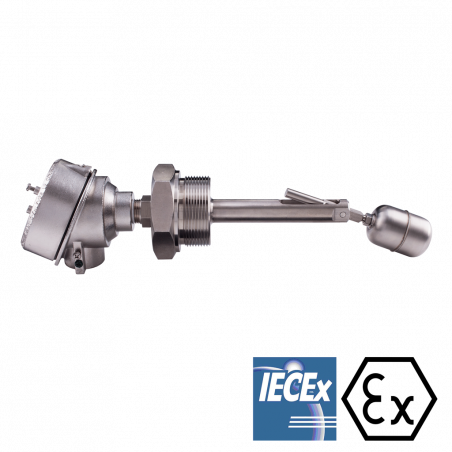

The HFS Ex Hazardous Area Horizontal Float Switch is a float operated magnet arm on a reed switch sensor stem which has been specifically designed for the control and indication of a liquid level whilst in a potentially explosive atmosphere. Manufactured in 316L Stainless Steel, the HFS Ex can be used in both high temperature and high pressure applications and is suitable for gas and dust hazardous environments. It reliably detects the liquid level and offers voltage free contact operation, ideally suited for use as part of a pump control system or for alarm signalling.
Less
Read more
5,003.03 PLN
5,003.03 PLN Gross price / pcs.
4,067.50 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
ASK FOR THE PRODUCT close
Message sent successfully.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Housing type Poziomy ATEX
  • Maximum voltage 50 V DC
  • Contacts SPDT 20 W C
  • Terminal 2"
  • Material Stal nierdzewna 316L
  • Sensor type Kontaktron
  • Minimum temperature -20 °C
  • Maximum temperature 120 °C
  • Max Pressure 30 Bar
The HFS Ex Hazardous Area Horizontal Float Switch is a float operated magnet arm on a reed switch sensor stem which has been specifically designed for the control and indication of a liquid level whilst in a potentially explosive atmosphere. Manufactured in 316L Stainless Steel, the HFS Ex can be used in both high temperature and high pressure applications and is suitable for gas and dust hazardous environments. It reliably detects the liquid level and offers voltage free contact operation, ideally suited for use as part of a pump control system or for alarm signalling.
