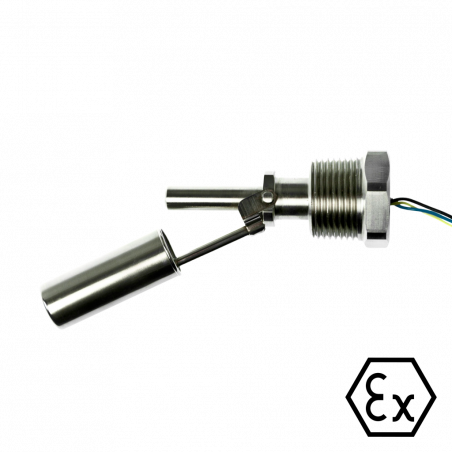

HFS FP 10C02 level sensor
  • HFS FP 10C02 level sensor

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Deeter Electronics Ltd

HFS FP 10C02 level sensor

  • HFS FP 10C02
  • Maximum current 500 mA
  • Housing type Poziomy ATEX
  • Maximum voltage 175 V
  • Contacts SPDT 10 W C
  • Terminal 3/8"
  • Material Stal nierdzewna 316L
  • Sensor type Kontaktron
  • Minimum temperature -20 °C
  • Maximum temperature 100 °C
  • Max Pressure 24 Bar
The HFS FP intrinsically safe switch is a horizontal magnetic float switch for control and indication of a liquid level whilst in a potentially explosive atmosphere. Manufactured in 316L Stainless Steel, it is a horizontally mounted Liquid Level Sensor ideally suited to high temperature or pressure operation. It is also suitable for harsh environments and chemically aggressive liquids. It can be changed from Normally Open to Normally Closed operation to allow for sensing of high or low conditions by rotating the orientation of the body through 180°.
Less
Read more
1,835.78 PLN
1,835.78 PLN Gross price / pcs.
1,492.50 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Maximum current 500 mA
  • Housing type Poziomy ATEX
  • Maximum voltage 175 V
  • Contacts SPDT 10 W C
  • Terminal 3/8"
  • Material Stal nierdzewna 316L
  • Sensor type Kontaktron
  • Minimum temperature -20 °C
  • Maximum temperature 100 °C
  • Max Pressure 24 Bar
The HFS FP intrinsically safe switch is a horizontal magnetic float switch for control and indication of a liquid level whilst in a potentially explosive atmosphere. Manufactured in 316L Stainless Steel, it is a horizontally mounted Liquid Level Sensor ideally suited to high temperature or pressure operation. It is also suitable for harsh environments and chemically aggressive liquids. It can be changed from Normally Open to Normally Closed operation to allow for sensing of high or low conditions by rotating the orientation of the body through 180°.
