Electro-Isolated ABB modules

The ABB is a semiconductors manufacturer characterized by high quality. Modules are used to drive industrial motors, smoothly accelarating fans and pumps and supply power to demanding applications.

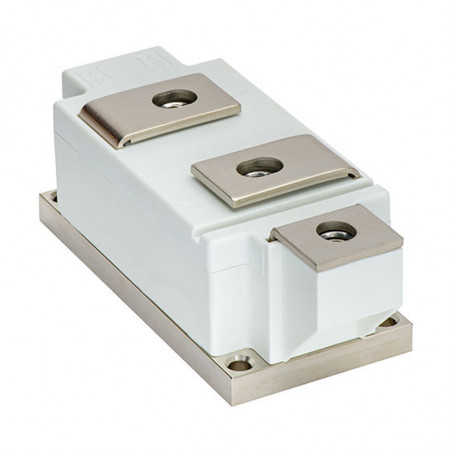

The above module has a standard housing commonly found on the market. Module is characterized by low losses when working at high temperatures. The module structure is pressed by the main spring against the base plate instead of a soldered joint. This design has better properties and ensures a longer life of the semiconductor.

Modules is characterized by

• High reliability
• Industry standard housing, size 60 mm
• Insulated baseplate by AIN ceramic
• Low losses when working at high temperatures
• UL recognized
• Voltage range 1,8 - 2,2 kV
• Forward current up to 890 A

Application

• Input rectifier in AC/AC converters
• DC power supply for applications such as industrial and renewables
• AC motor soft starters and variable speed drives in applications such as industrial and renewables

Types of electro-insulated modules
